Reciprocating Gas Compressors
Blackmer HD Series
BLACKMER Oil-Free Gas Compressors for Industrial Gas Applications
BLACKMER HD Compressor Series | Standard Features
Engineered for Durability and Performance
Ductile Iron Cylinder and Head
Constructed from ductile iron, the cylinder and head provide superior strength, enhanced corrosion resistance, and greater resilience to thermal shock compared to conventional cast iron—ideal for demanding applications.
Water-Cooled Cylinder and Head (HDL Models)
HDL models feature water-cooled cylinders and heads to effectively reduce operating temperatures, extending component life and ensuring consistent performance in high-duty cycles.
High-Efficiency Valves
Standard valve plates are made from high-performance PEEK, a self-lubricating material with low mass and excellent wear resistance. The slight flexibility of PEEK allows for superior sealing and durability, even under abuse, outperforming traditional metal plates. Stainless steel valve options are also available for specialized applications.
Note: BLACKMER HD080, HD160, and HD170 Series models are equipped with TNT-12 impregnated steel valve plates and bumpers for enhanced durability.
Extra-Thick PTFE Piston Rings
BLACKMER HD compressors feature PTFE piston rings that are twice as thick as those used in competitive models. This added thickness provides a larger wear surface, resulting in improved sealing and significantly extended ring life.
O-Ring Seals Between the Cylinder and Head
Buna-N O-ring head seals come standard and provide positive sealing under all operating conditions. Other material options include, PTFE, FKM, neoprene, and ethylene-propylene.
Precision Design for Superior Sealing and Reliability
Precision Design for Superior Sealing and Reliability
Precise Leakage Control

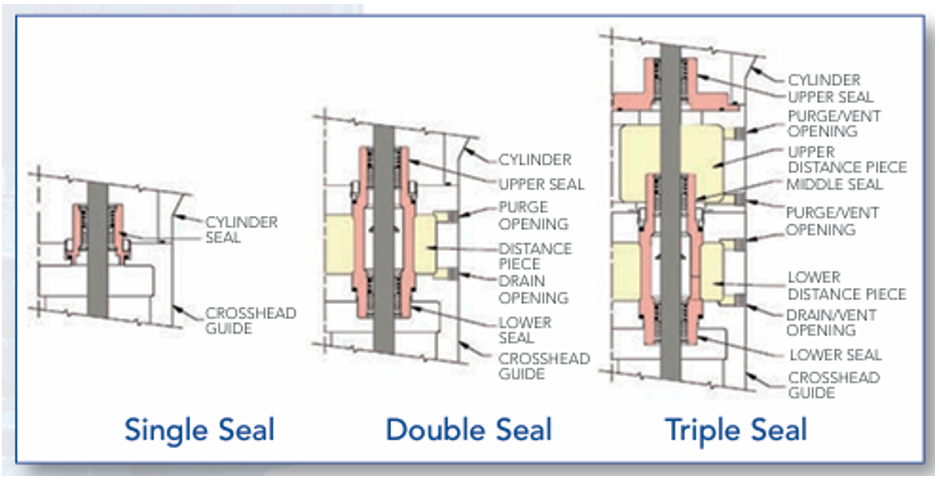

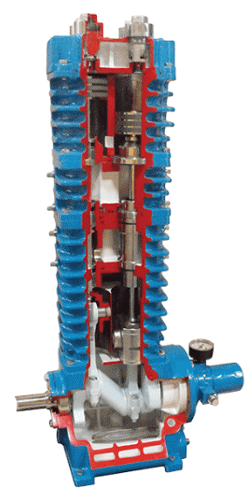

BLACKMER HD compressors are available in Single-Seal (no distance piece), Double-Seal (single distance piece), and Triple-Seal (double distance piece) configurations—offering tailored leakage control to suit a wide range of gas-handling needs. These designs help minimize product contamination and maintain gas stream purity in critical applications.
Leak-Free Cylinder Head Design
Center head bolts are engineered to avoid penetrating the gas chamber, eliminating the need for head bolt gaskets. This innovative design removes a potential leakage point, increasing reliability and reducing maintenance requirements.
One-Piece Piston with Positive-Locking Nut
The durable, one-piece piston is secured to the piston rod with a single positive-locking nut. This robust design offers superior strength and simplifies maintenance, outperforming multi-piece piston assemblies that rely on multiple fasteners and are more prone to loosening under stress.
Built-In Features for Enhanced Longevity and Flexibility
ANSI Flanged Connections
Most HD Series Compressors feature ANSI-standard flanged connections, allowing for maximum flexibility in piping layout and simplified system integration.
Heavy-Duty Steel Components
Steel wrist pins supported by steel needle bearings ensure long-lasting performance, especially in high-load and severe operating conditions.
Self-Adjusting PTFE Piston Rod Seals
These seals maintain optimal sealing pressure while minimizing friction, ensuring oil-free compression and extended service life.
Wear-Resistant Crosshead Assemblies
Ductile iron crossheads are precision-machined with dedicated lubrication channels and ports. This design ensures thorough lubrication, reduces wear, and eliminates galling for reliable long-term operation.
Pressure-Lubricated Crankcase
The crankcase features pressure lubrication via a self-reversing oil pump directly driven by the crankshaft. Oil is distributed to all bearing surfaces, including the crosshead, and a spin-on automotive-style oil filter is standard for easy maintenance.
Protective Epoxy Coating
A specially formulated epoxy coating protects the entire interior of the crankcase, providing resistance against wear, corrosion, and harsh environmental conditions.
No Yellow Metals
BLACKMER HD compressors are constructed without brass or copper components, eliminating the risk of corrosion from aggressive or acidic gases and ensuring long-term reliability in harsh gas-handling environments.
BLACKMER HD Compressors | Applications
Reciprocating Gas Compressors BLACKMER HD Series have different applications for industrial gas handling.
• Gas Transfer, Vapor Recovery, Gas Enhanced Recovery, Enhanced Recovery Gas, Liquefied Gas Transfer Evacuation, Gas Blanketing, Pressure Boosting, Flare Elimination, Leak Test Recovery
Specially designed with no yellow metals, the BLACKMER HD Series Reciprocating Gas Compressors are designed to work with all the following gases and more:
• Air • Ammonia • Argon • Butadiene • Butane • Carbon Dioxide • Carbon Monoxide • CFCs • Chlorine • Cyclohexane • Cyclopropane • Dimethylamine • Dimethyl Ether • Ethane • Ethyl Alcohol • Ethyl • Chloride • Ethylene • Ethylene Oxide • HCFCs • Helium • n-Heptane • n-Hexane • Hydrogen • Hydrogen Chloride • Hydrogen Sulfide • Isobutane • Isobutene • Isobutylene • Isopentane • Methane • Methanol • Methyl Chloride • Methyl Mercaptan • Monoethylamine • Natural Gas • Nitrogen • Nitrogen Dioxide • Nitrous Oxide • Ozone • n-Octane • n-Pentane • Propane • Propylene • Refrigerants • Sulfur Dioxide • Sulfur Hexafluoride • Trichlororethane • Tetrafluorethylene • Trimethylamine • Vinyl Chloride • Xenon • and other gases

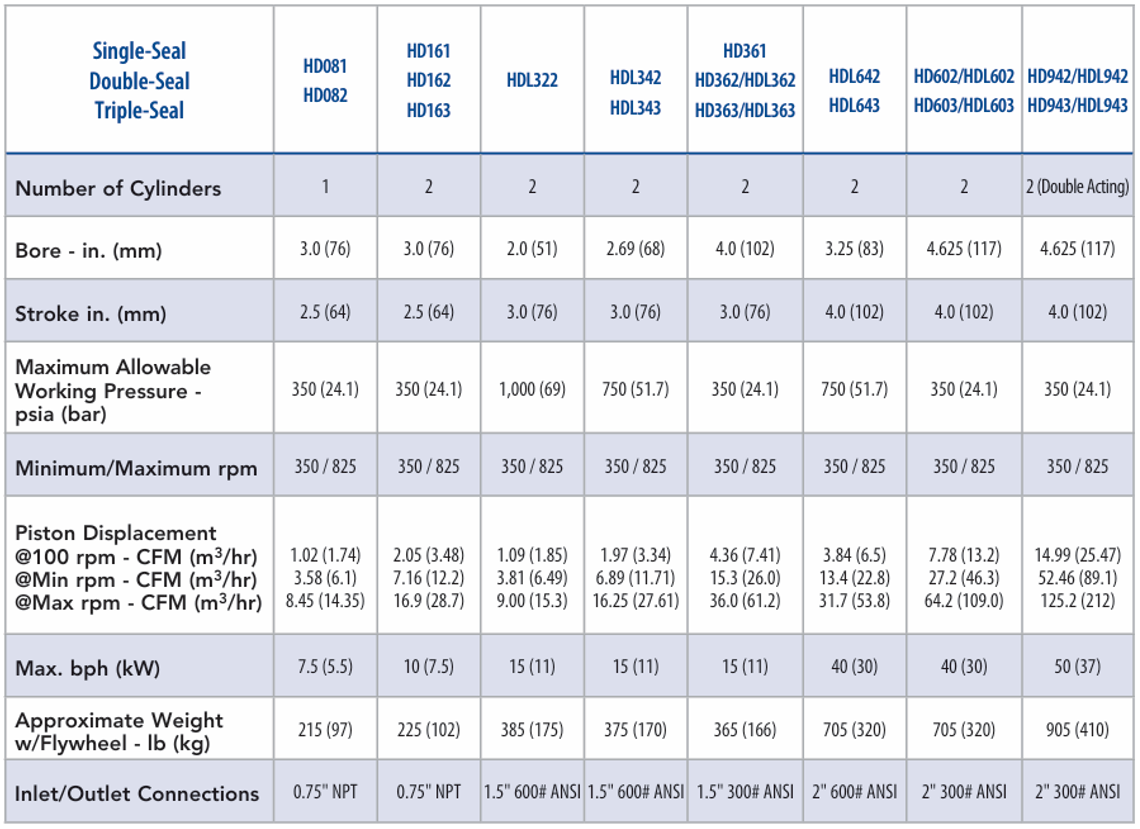

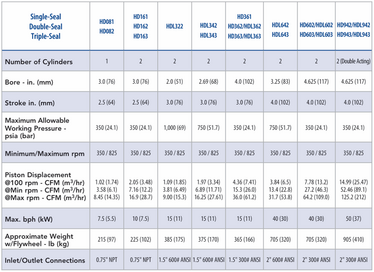

BLACKMER HD Compressors | Specifications – Single-Stage Models
Compression Ratio and Temperature Considerations
Compression ratios are typically limited by the resulting discharge temperature. High compression ratios—especially when handling certain gases—can generate excessive heat, often exceeding 350°F (177°C). To ensure safe and efficient operation, the compressor’s duty cycle must allow for adequate cooling intervals between operating periods. This helps prevent excessive temperatures that could compromise performance or component longevity.
BLACKMER HD Compressors | Specifications – Two-Stage Models
Compression Ratio and Temperature Considerations
Compression ratios are typically limited by the resulting discharge temperature. High compression ratios—especially when handling certain gases—can generate excessive heat, often exceeding 350°F (177°C). To ensure safe and efficient operation, the compressor’s duty cycle must allow for adequate cooling intervals between operating periods. This helps prevent excessive temperatures that could compromise performance or component longevity.

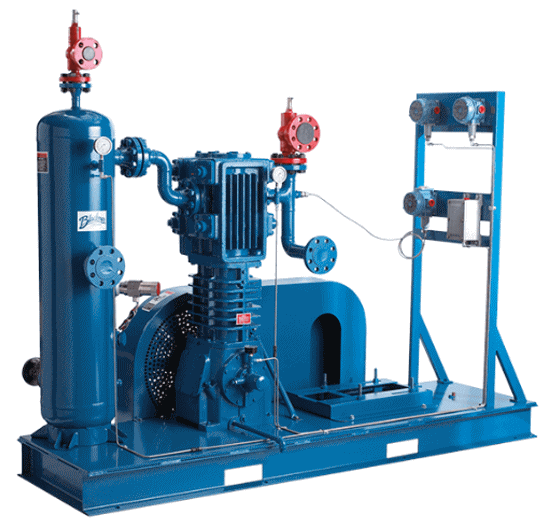

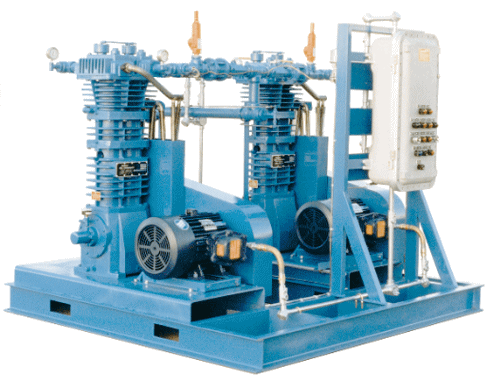

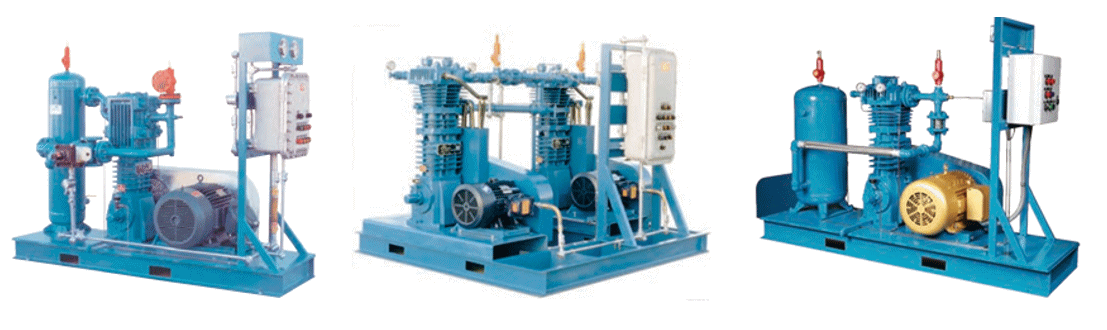

BLACKMER HD Compressors | Custom Made Units

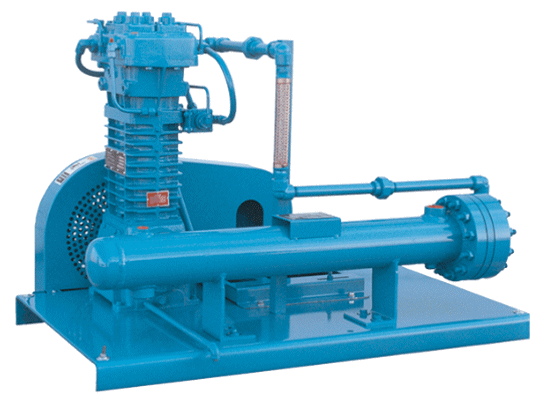

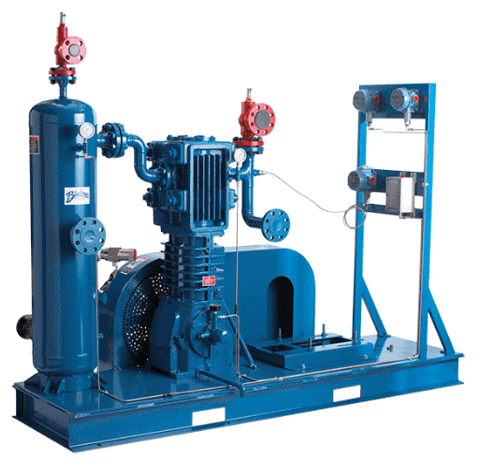

Complete custom gas compressor packages are available. Engineering, manufacturing, drawings, service are all provided per specifications to meet the technical requirements.

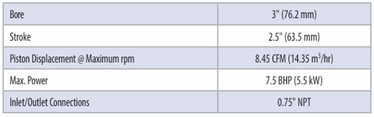

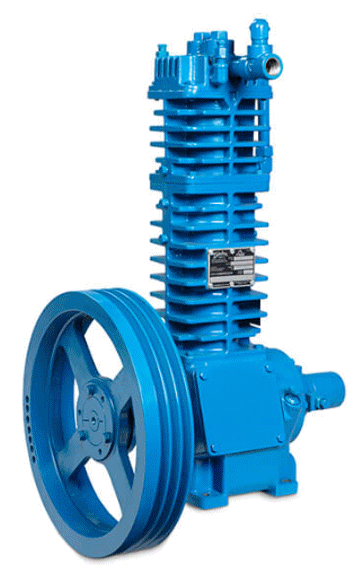

The BLACKMER HD080 Series Gas Compressors offer a flow rate of 14.35 m³/hr at max rpm. This single-stage, air-cooled compressor is suitable for operation at lower compression ratios and for industrial liquefied gas transfer applications. Available in the BLACKMER HD081 a single-seal configuration and the BLACKMER HD082 model that has a double-seal configuration.

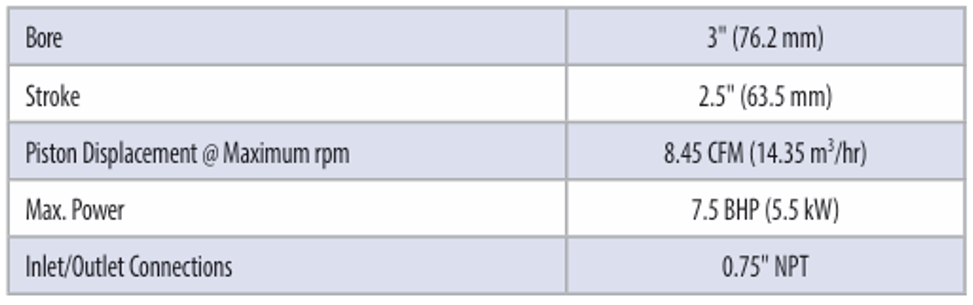

BLACKMER HD080 Series Technical Data:

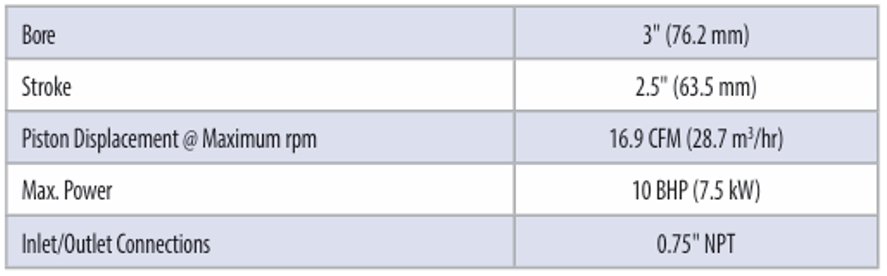

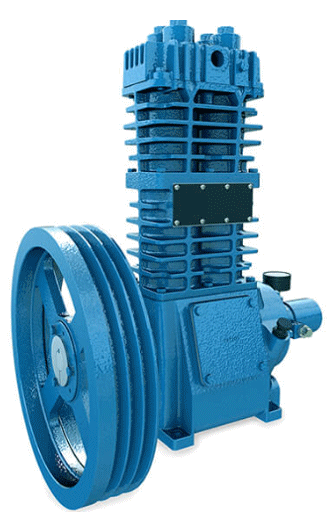

Blackmer HD160 Series single-stage, two cylinder, air-cooled reciprocating gas compressors feature flow rates of 28.7 m³/hr at max rpm. For precise leakage control and to minimize product contamination, the BLACKMER HD160 Series gas compressors are available in single- (BLACKMER HD161), double- (BLACKMER HD162), or triple-seal (BLACKMER HD163) models.
BLACKMER HD160 Series Technical Data:

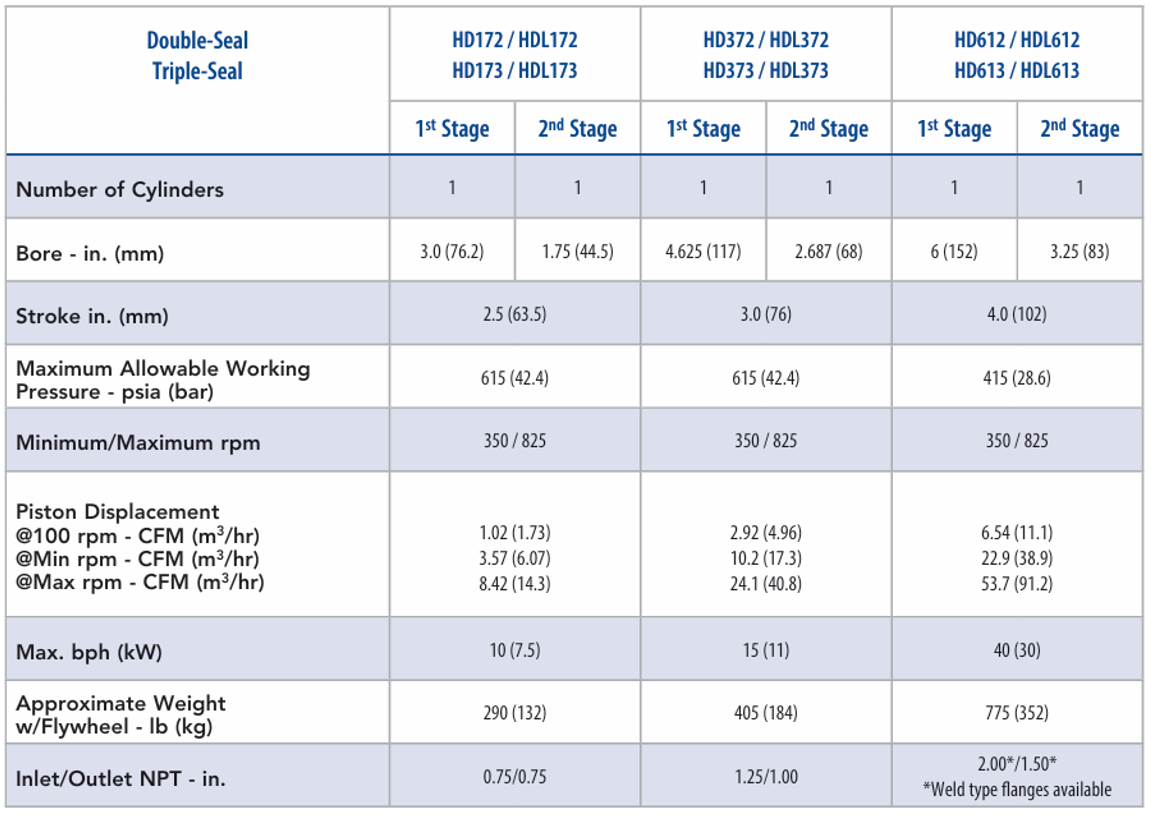

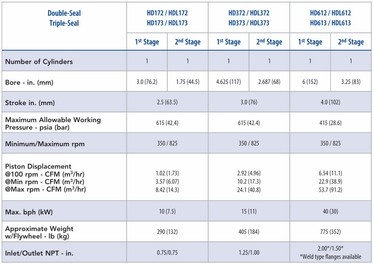

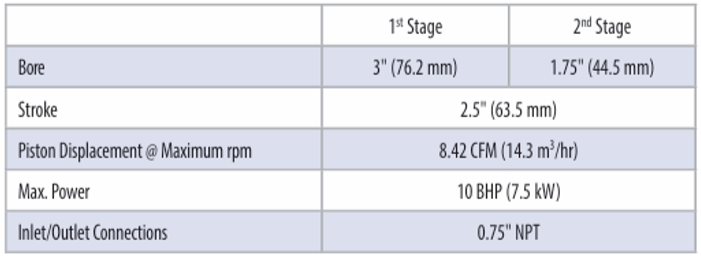

Available in air-cooled and liquid-cooled models, the Blackmer HD170 Series two-stage reciprocating gas compressors feature flow rates of 14.3 m³/hr at max rpm. The BLACKMER HD170 Series gas compressors have four models available, the air-cooled (BLACKMER HD172/173), and liquid-cooled (BLACKMER HDL172/173) models. The BLACKMER HD170 Series gas compressors offer double- (BLACKMER HD172/BLACKMER HDL172), or triple-seal (BLACKMER HD173/ BLACKMER HDL173) models.
BLACKMER HD170 Series Technical Data:
The liquid-cooled Blackmer HDL320 Series single stage, two-cylinder reciprocating gas compressors feature flow rates of 15.3 m³/hr at max rpm. The BLACKMER HDL320 Series gas compressors features a double-seal (BLACKMER HDL322) model.
HDL320 Series Technical Data:

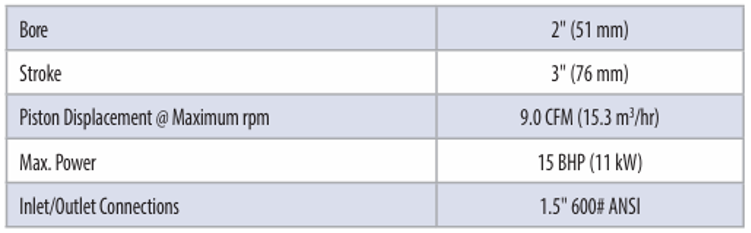

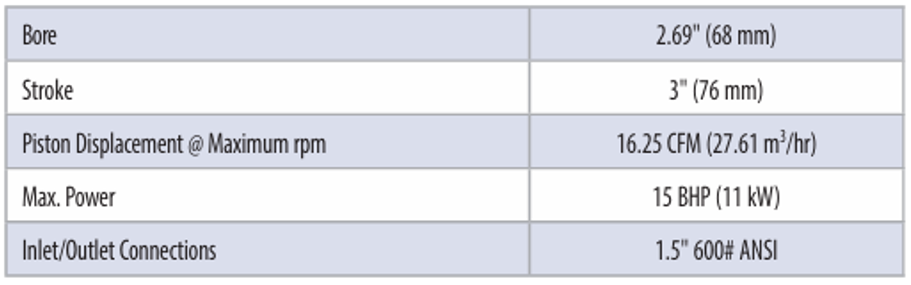

The liquid-cooled Blackmer HDL340 Series single-stage, two-cylinder reciprocating gas compressors feature flow rates of 27.6 m³/hr at max rpm. The BLACKMER HDL340 Series gas compressors have both double- (BLACKMER HDL342), or triple-seal (BLACKMER HDL343) models.
BLACKMER HDL340 Series Technical Data:

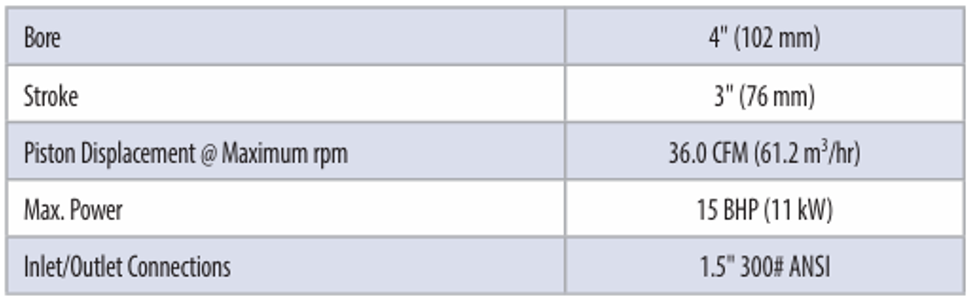

Available in five models, the BLACKMER HD360 Series of reciprocating gas compressors feature flow rates of 61.2 m³/hr at max rpm. These single-stage, two-cylinder gas compressors are available in both air-cooled (HD361/362/363), and liquid-cooled (HDL362/363) models. The BLACKMER HD360 Series gas compressors are available in single- (HD361), double- (HD362/HDL362), or triple-seal (HD363/HDL363) models.
HD360 Series Technical Data:

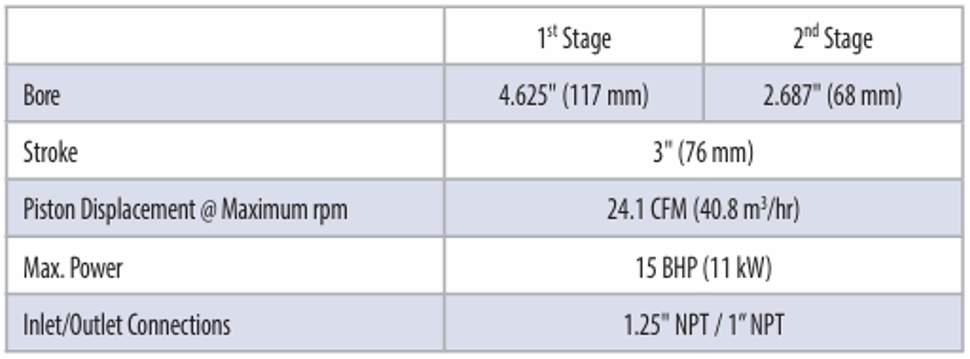

Designed with both air-cooled and liquid-cooled models, the Blackmer HD370 Series two-stage reciprocating gas compressors feature flow rates of 40.8 m³/hr at max rpm. The BLACKMER HD370 Series gas compressors have four models available, the air-cooled (HD372/373), and liquid cooled (BLACKMERHDL372/373) models, and are offered in both double- (BLACKMERHD372/HDL372), or triple-seal (BLACKMER HD373/HDL373) configurations.
BLACKMER HD370 Series Technical Data:
- Available in four models
- BLACKMER HD600 Series of reciprocating gas compressors
- flow rates up to 109 m³/hr at max rpm.
- These single-stage, two-cylinder gas compressors
- are available in both air-cooled (HD602/603), and liquid-cooled (HDL602/603) models,
- and are available in double- (HD602/ HDL602), or triple-seal (HD603/HDL603) configurations.
- BLACKMER HD600 Series also features the S3R oil control seal that keeps oil in the crankcase and prevents oil migration.
BLACKMER HD600 Series Technical Data:

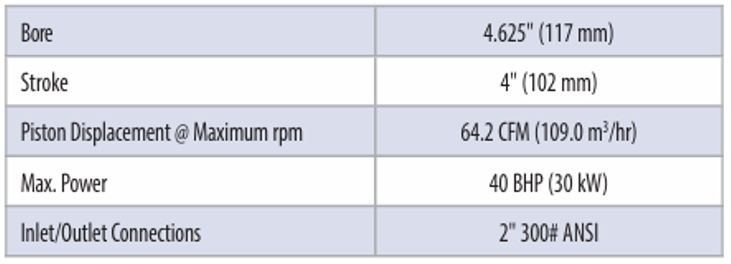

- Available in air-cooled and liquid-cooled models
- the Blackmer HD610 Series two-stage reciprocating gas compressors feature flow rates up to 91.2 m³/hr at max rpm.
- BLACKMER HD610 Series gas compressors have four models available, the air-cooled (HD612/613), and liquid-cooled (HDL612/613) models
- and has offerings is available in double- (HD612/HDL612), or triple-seal (HD613/HDL613) configurations
- The BLACKMER HD610 Series also features the S3R oil control seal that keeps oil in the crankcase and prevents oil migration.
HD610 Series Technical Data:

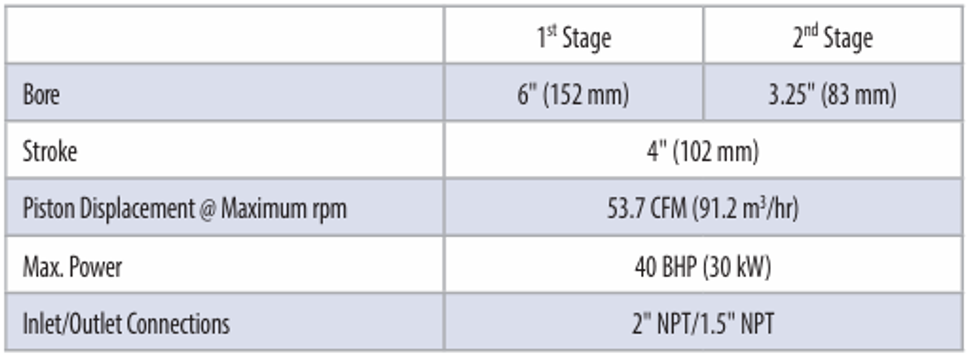

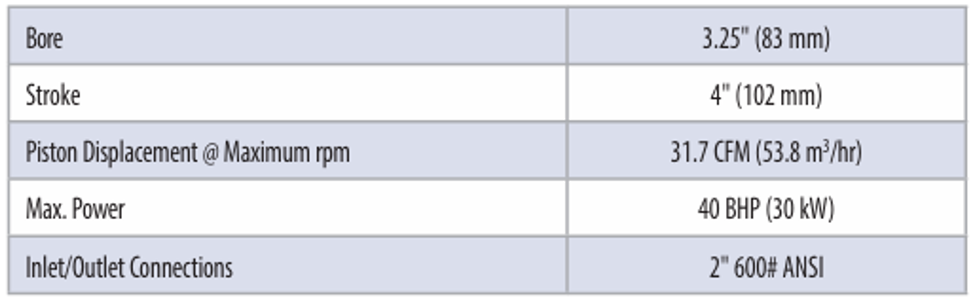

- The liquid-cooled Blackmer HDL640 Series single stage
- two-cylinder reciprocating gas compressors
- possible flow rates up to 53.8 m³/hr at max rpm.
- BLACKMER HDL640 Series gas compressors offer double- (HDL642), or triple-seal (HDL643) options
- BLACKMER HDL640 Series also features the S3R oil control seal that keeps oil in the crankcase and prevents oil migration.
HDL640 Series Technical Data:

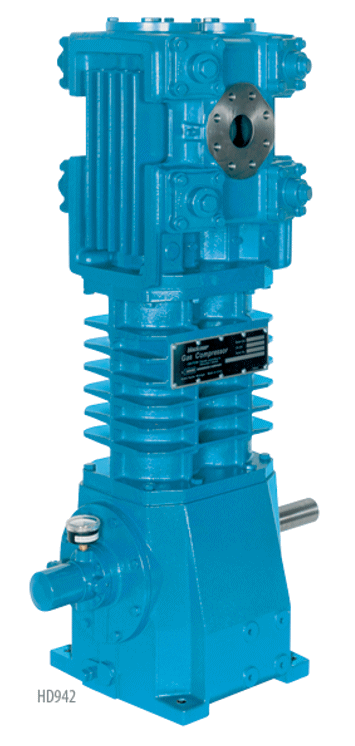

- The BLACKMER HD940 Series is the largest offering of Blackmer reciprocating gas compressors
- flow rates up to 212 m³/hr at max rpm.
- These single-stage, double acting two-cylinder gas compressors are available in both air-cooled (BLACKMER HD942/943), and liquid cooled (BLACKMER HDL942/943) models
- are vailable in double- (BLACKMER HD942/HDL942), or triple-seal (BLACKMER HD943/HDL943) models.
- BLACKMER HD940 Series also features the S3R oil control seal that keeps oil in the crankcase and prevents oil migration.
BLACKMER HD940 Series Technical Data:
